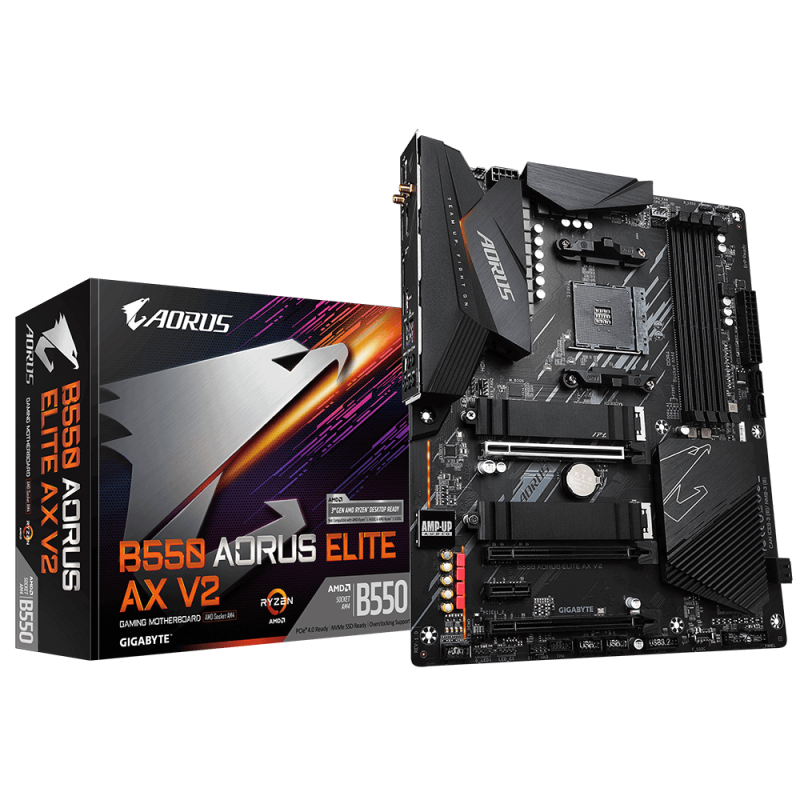

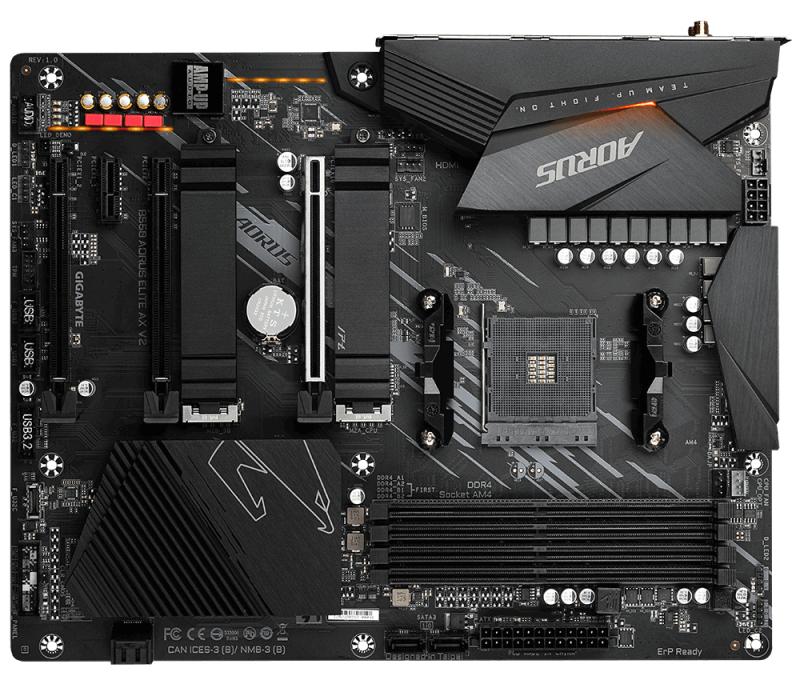

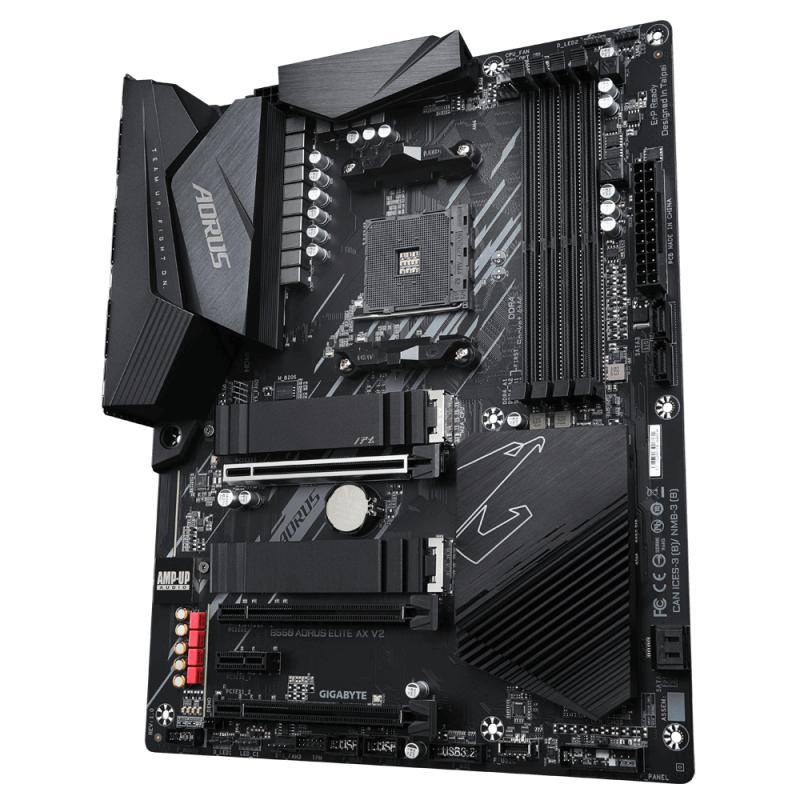

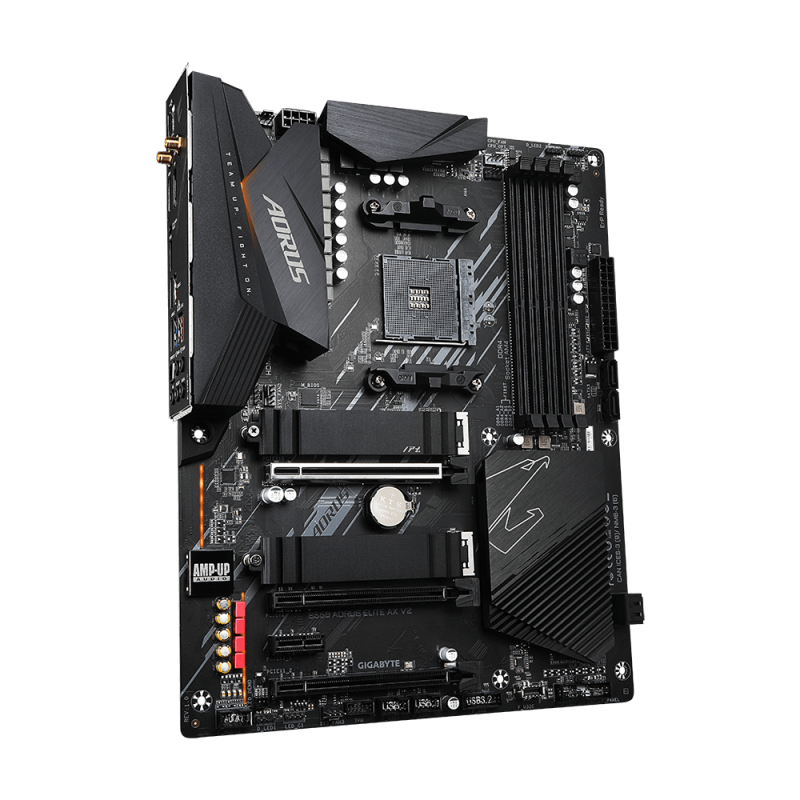

Placa de baza Gigabyte B550 AORUS ELITE AX V2, Socket
17 în stoc
919,00lei 1.033,99lei
17 în stoc
Pentru a sustine in totalitate cele mai noi procesoare AMD Ryzen ™ 3 Gen, placile de baza B550 sunt echipate cu solutia de putere finala, care este adevarata directa, digitala si cu mai multe faze. Dupa nenumarate experimente si testari, GIGABYTE prezinta placile de baza B550, imbatabile pentru entuziasti. Fara compromis si nu va opriti niciodata in a obtine un nivel mai mare:
- 12+2 Phases Digital Twin Power Design MOSFET Driver; Condensatoare solide; Conector alimentare CPU;
- PCB din cupru 2x.
- Solutia wireless Intel accepta 802.11ax, permite performante wireless gigabit, ofera streaming video lin, experienta de joc mai buna, putine conexiuni si viteze de pana la 2,4 Gbps *. Mai mult, Bluetooth 5 ofera o gama de 4X peste BT 4.2 si cu transmisie mai rapida.
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | Yes |
| CPU încorporat | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| Batteries included | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC1200 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| S/PDIF out port | Yes |
| Maximum internal memory | 128 GB |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Parallel processing technology support | Not supported |
| VGA (D-Sub) ports quantity | 0 |
| DirectX version | 12.0 |
| DVI-D ports quantity | 0 |
| Maximum resolution | 5120 x 2880 pixels |
| Compatible processor series | AMD Ryzen 3000 Series |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Maximum number of SMP processors | 1 |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Motherboard form factor | ATX |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Number of storage drives supported | 6 |
| PS/2 ports quantity | 0 |
| RAID levels | 0, 1, 10 |
| eSATA ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Number of chassis fan connectors | 3 |
| PC health monitoring | CPU, Fan, Temperature, Voltage |
| PCI Express x16 slots | 2 |
| Maximum internal memory supported by processor | 128 GB |
| Supported memory clock speed (max) | 4733 MHz |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Number of SATA connectors | 4 |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Supported processor sockets | Socket AM4 |
| Model Chipset | B550 |
| Format | ATX |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| Bluetooth | Da |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| USB Type C | Da |
| Producator | GIGABYTE |
| Garantie | 36 |
Nu există recenzii încă.
