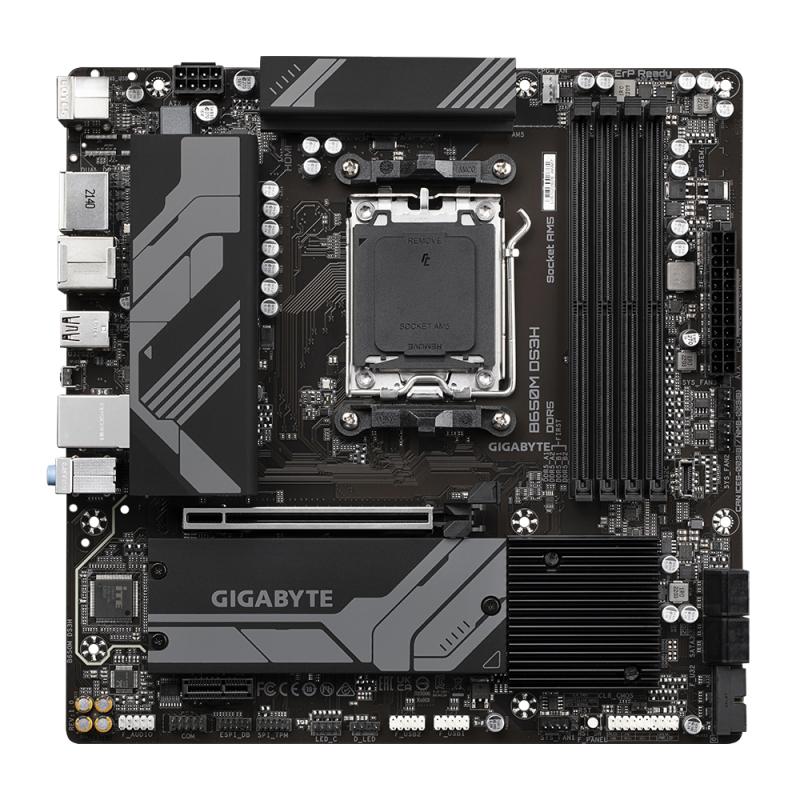

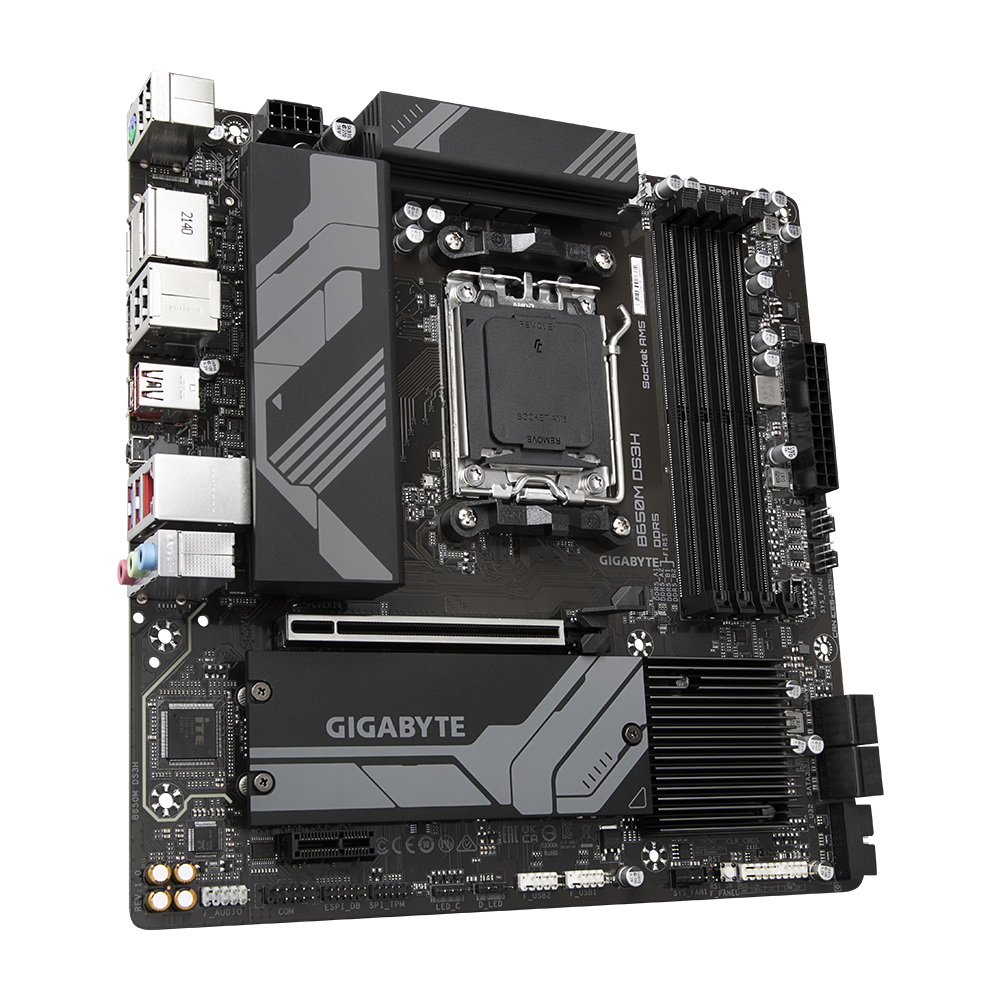

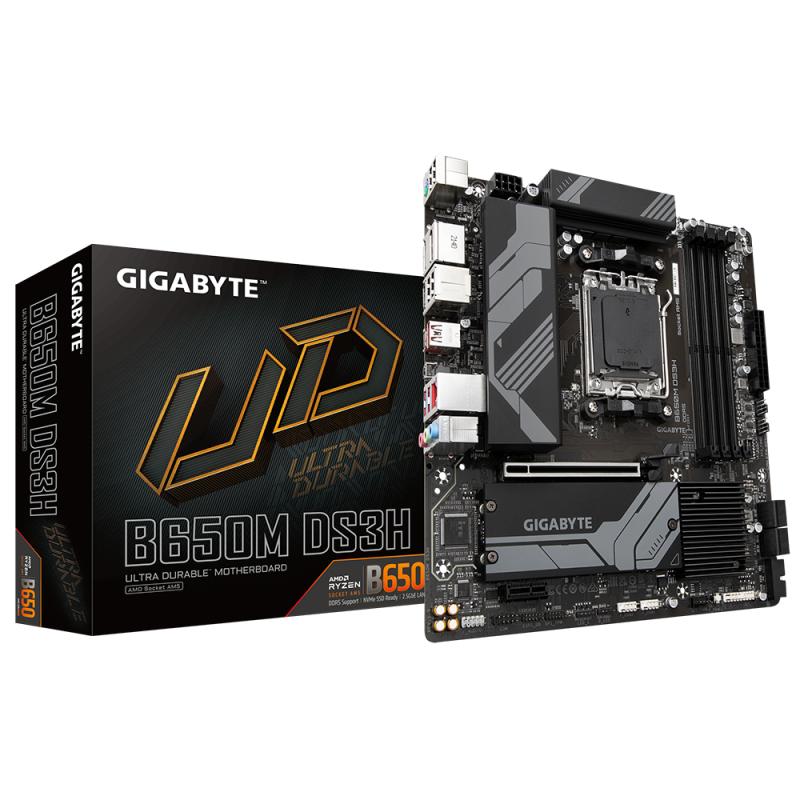

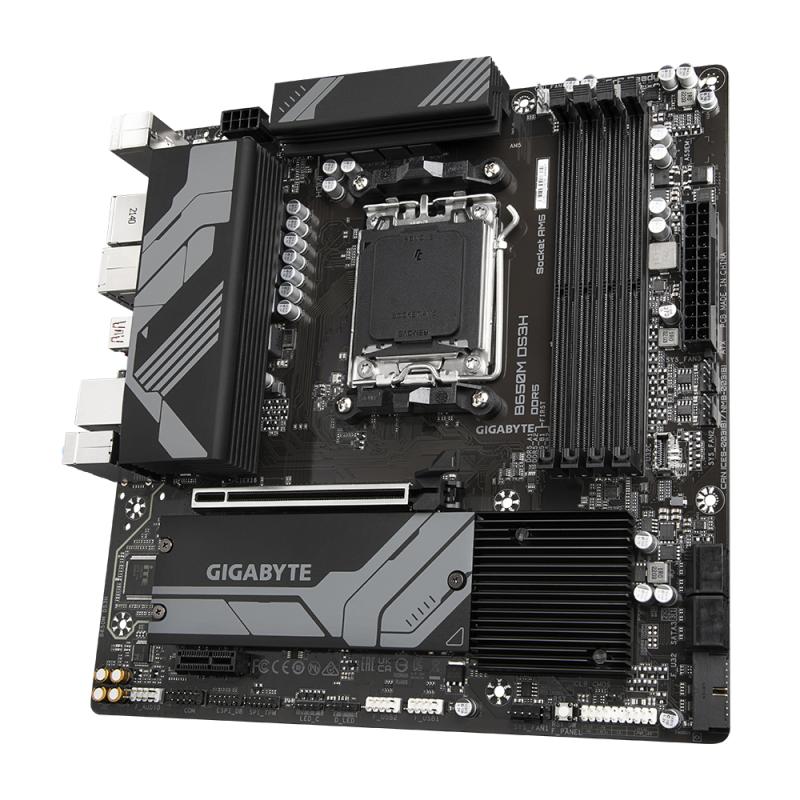

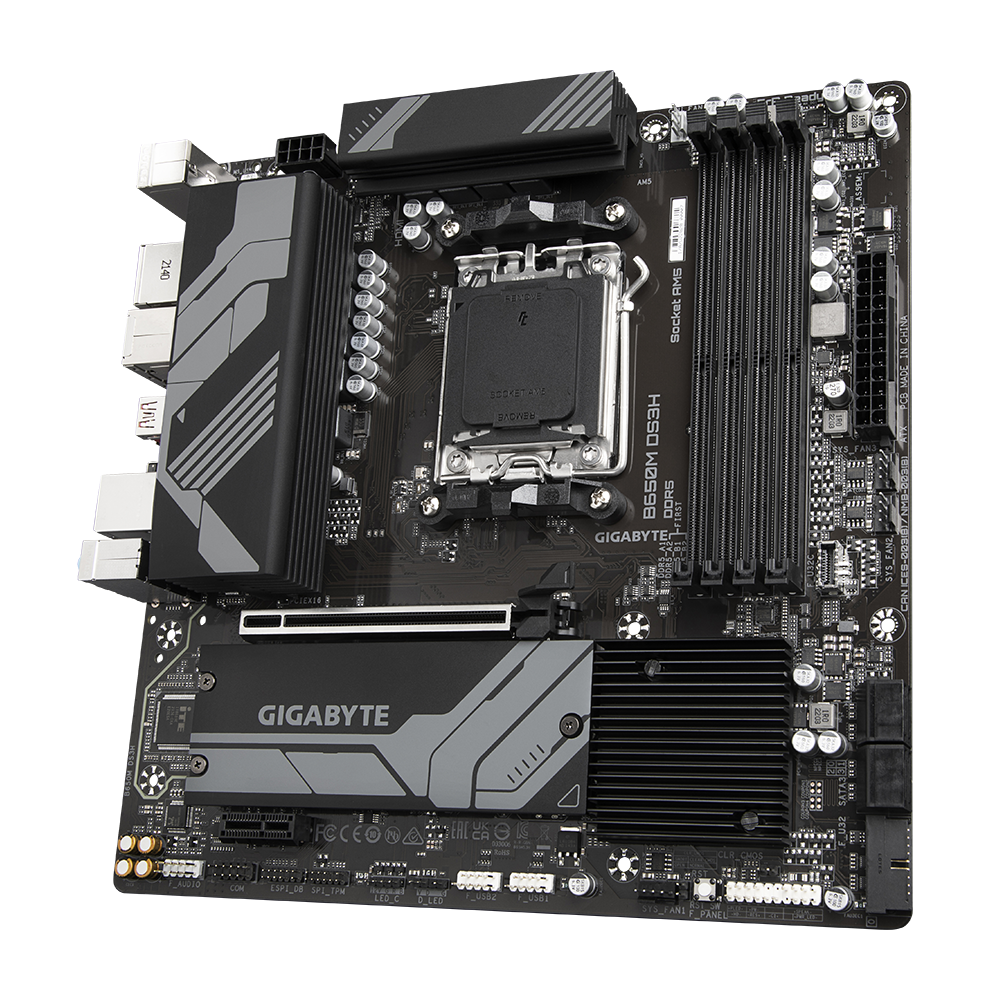

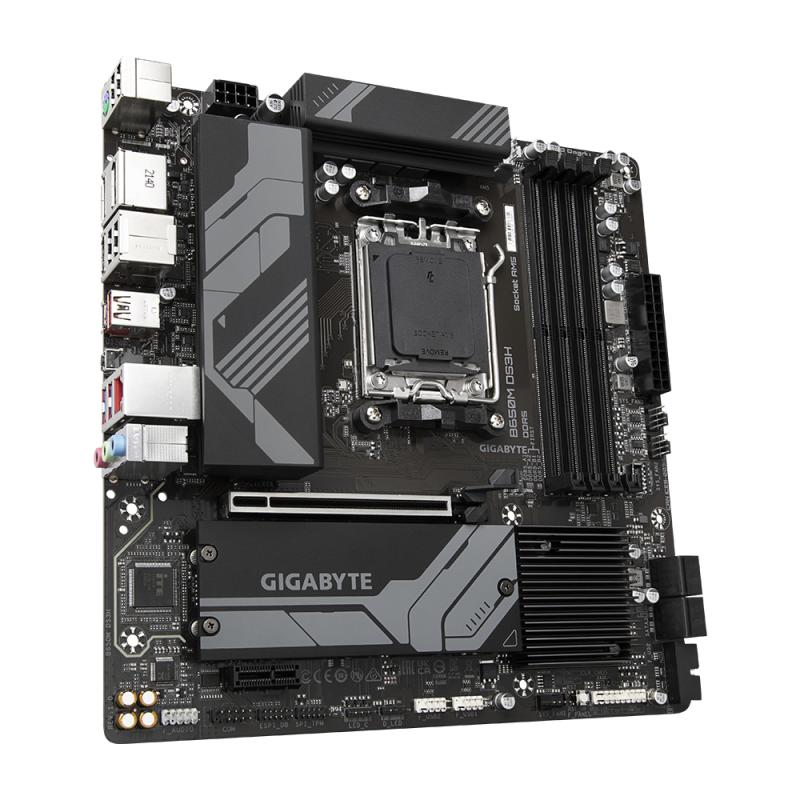

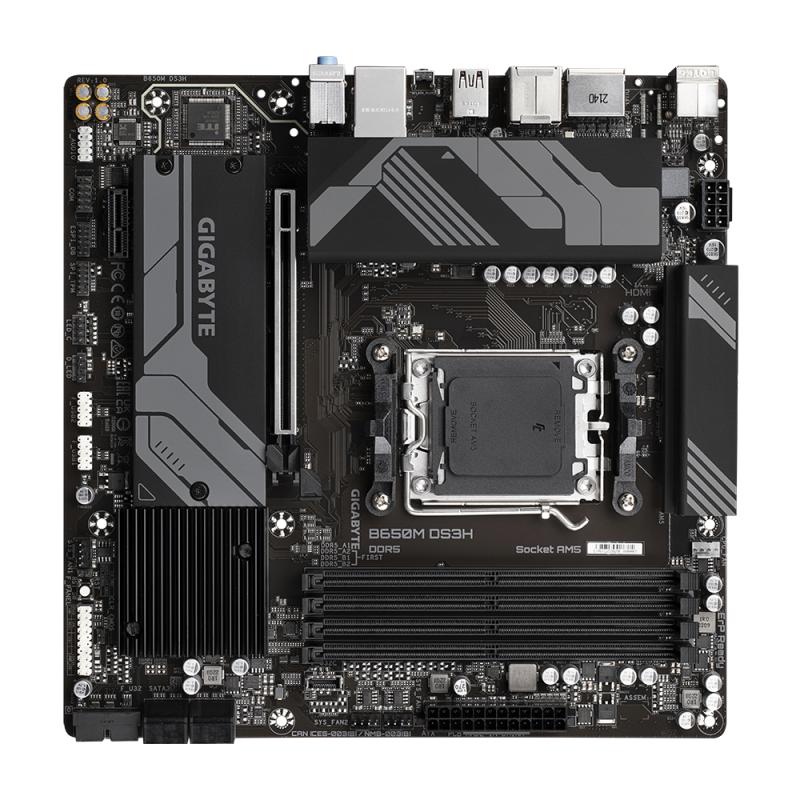

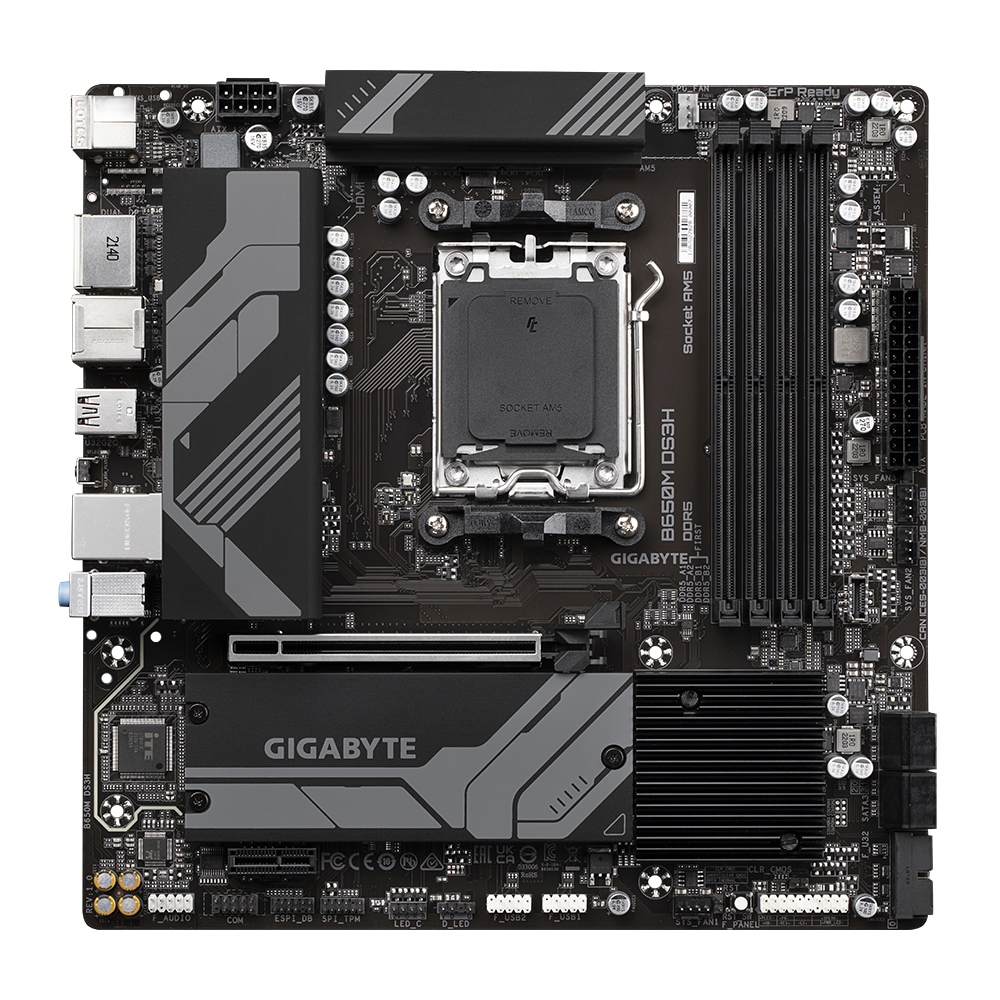

Placa de baza Gigabyte B650M DS3H AM5 AMD Socket
46 în stoc
943,99lei 1.251,99lei
46 în stoc

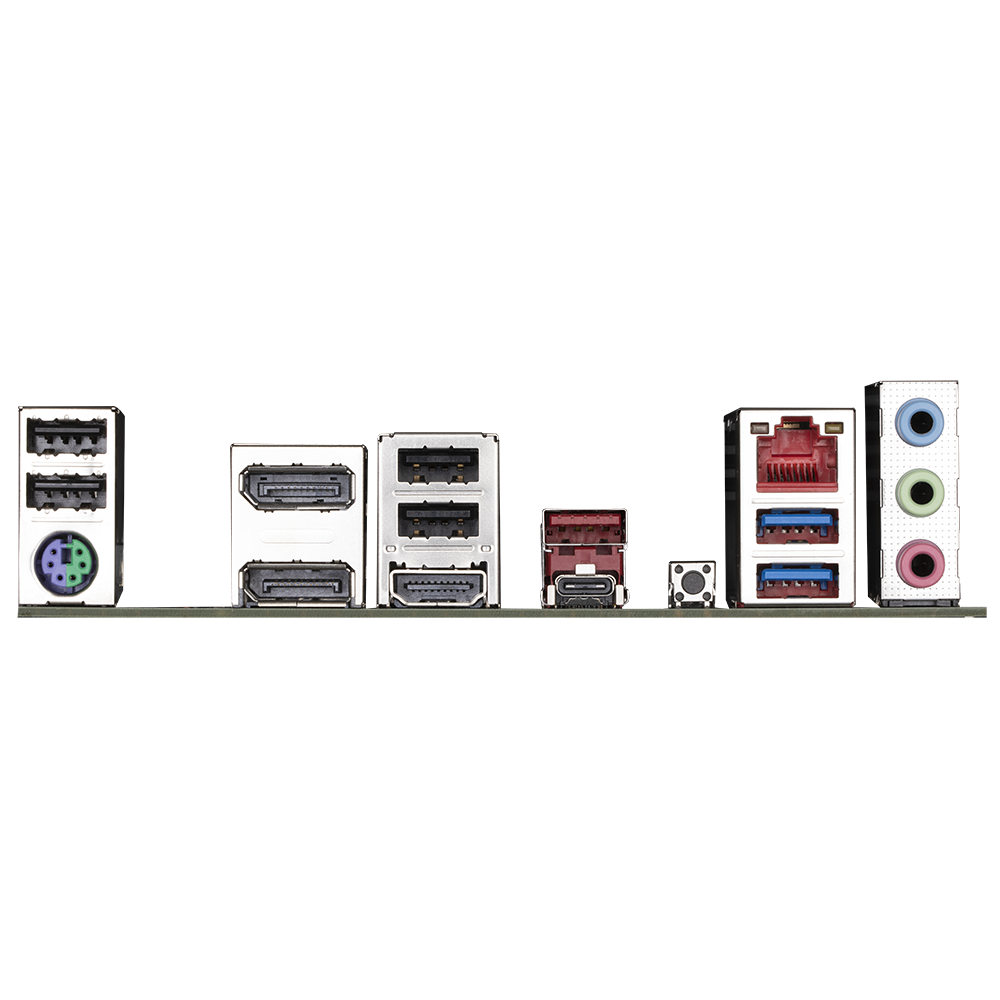

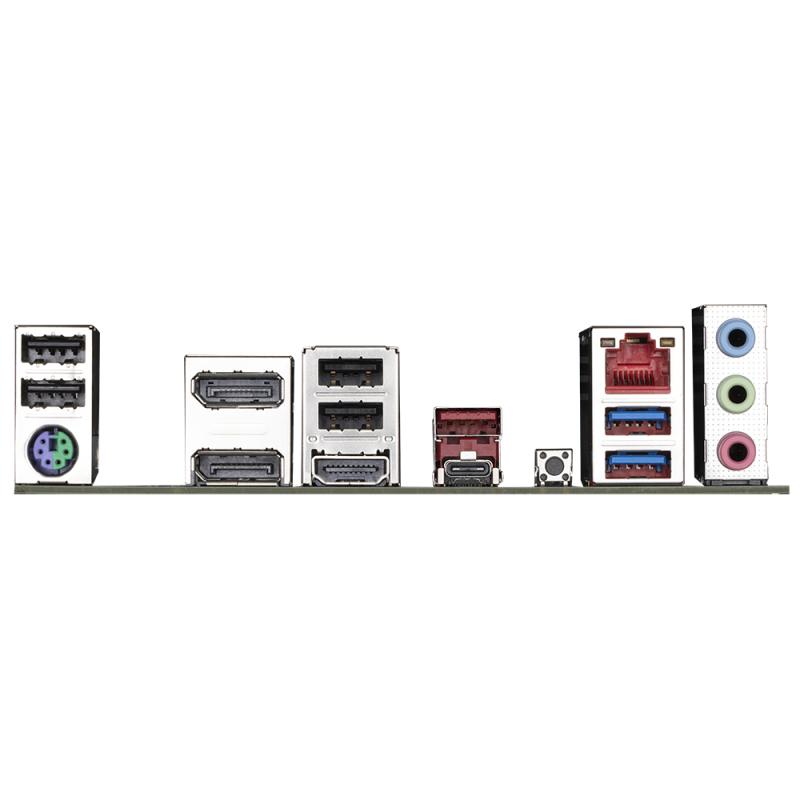

Placa de baza Gigabyte B650M DS3H AM5 AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance PCIe x16 EZ-Latch with Quick Release & Screwless Design Fast Networks：2.5GbE LAN Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-Fi | No |
| Onboard-CPU | No |
| Memory channels | Dual-channel |
| RAID support | Yes |
| Batteries included | Yes |
| HDMI | Da |
| Thunderbolt | Nu |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Line-in | Yes |
| Audio chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 2 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| HDCP | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| VGA (D-Sub) ports quantity | 0 |
| DirectX version | 12.0 |
| DVI-D ports quantity | 0 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Supported memory types | DDR5-SDRAM |
| Number of HDDs supported | 4 |
| Discrete graphics support | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| ECC сompatibility | Non-ECC |
| Number of storage drives supported | 6 |
| Serial port headers | 1 |
| RAID levels | 0, 1, 10 |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Number of chassis fan connectors | 3 |
| PC health monitoring | Fan, Temperature, Voltage |
| Motherboard chipset | AMD B650 |
| LAN controller | Realtek RTL8125 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz |
| Maximum internal memory per slot | 64 GB |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 3 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Model Chipset | B650 |
| Soclu Procesor | Socket AM5 |
| Tip Memorie | DDR5 |
| Memorie maxima | 256 GB |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Gaming | Nu |
| Format | Micro-ATX (mATX) |
| Numar sloturi memorie | 4 |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| USB Type C | Da |
| Producator | GIGABYTE |
| Garantie | 36 |
